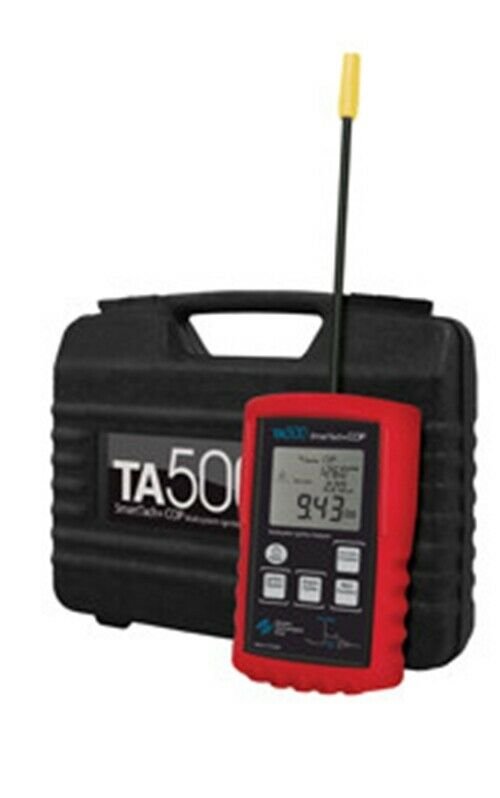

GENERAL TECHNOLOGIES CORP. Multisystem Engine Analyzer SFTA500

GENERAL TECHNOLOGIES CORP. Multisystem Engine Analyzer SFTA500 The TA500's unique and proprietary technology allows the user to perform quick and reliable diagnostics of non-starts, misfires, fouled up or damaged spark plugs and/or spark plug wires, by comparing digital read-outs of the spark plug voltage and spark burn time between cylinders on engines using Coil on Plug, Coil near Plug, conventional distributor/ignition coil, DIS (Distributor-less) or waste spark and magneto technologies. Simple to use, the TA500 requires no special adapters, cables or a scope and is equipped with a large digital display that shows spark plug voltage, spark burn time, RPM, as well as Min/Max readings in real time. Multisystem ignition analyzer Measures spark plug voltage from 0 to 50000 Volt Measures spark burn time from 0 to 10 ms Special antenna sensor allows quick testing of Coil on Plug and Coil near Plug modules, and easy hook-up to spark plug and ignition coil wires No ground wire connections required, for fast troubleshooting Multiple diagnostic applications are described in comprehensive User's Handbook (Included) Tachometer function For 1 to 12 cylinders and 2, 4 cycles with special DIS (Distributor-less or waste spark) mode. Measures from 200 to 20000 RPM on a 4-1/2 digits LCD display Advanced microcontroller technology yields 0.5 % accuracy Works on Coil on plug, Coil near Plug, DIS (Distributorless or waste spark), Conventional, Magneto and other spark ignition system. Technical Specifications Display: Large 4-1/2 Digits LCD + 2 x 3-1/2 + 0 Digits secondary displays (for Maximum, Minimum and other functions) Tachometer Range: 200 to 19999 RPM Cycles: 2 and 4 Cycles, and DIS Tachometer accuracy: ?¤ 0.5% + 1 LSB Response time: 0.3 Seconds Ignition peak voltage range: 0 to 49.9 KVolt Probe: 12" (30 cm) flexible probe with capacitive pick-up Secondary ignition pick up: Capacitive sensor Spark Ignition System: Coil on Plug, Coil near Plug, Distributor, Magneto and D.I.S.(Distributor-less or waste spark ignition system) Power Source: One standard 9 Volt alkaline battery type NEDA 1604 IEC 6F 22 Battery life: Approx. 20 hours of operation Power Saving: Auto power off after approximately 3 min. of inactivity Physical dimensions : 6.1" (H) x 4" (W)x 1.5" (D) (155 x 102 X 38 mm) - including holster but excluding antenna Weight: Approximately 12.4 Oz ( 355 g) Including battery Electrical Specifications Maximum spark plug wire voltage (Through capacitive pickup only): 49.9 KVolt
